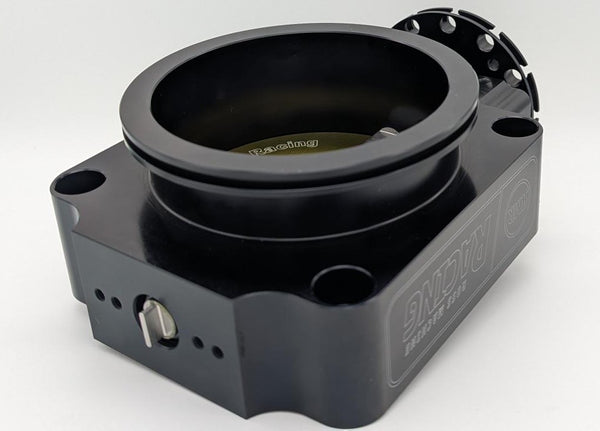

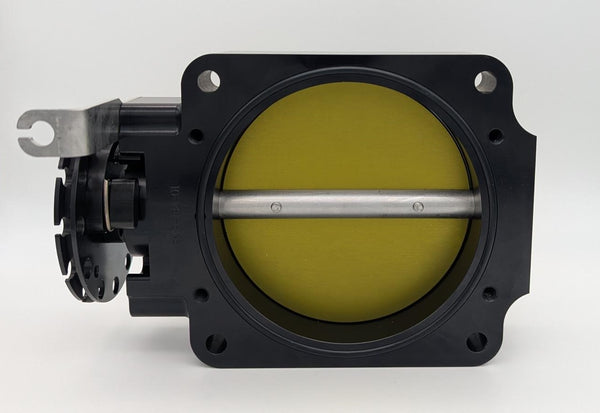

Ross Machine Racing's 105mm bore throttle body is made to the highest standards. Manufactured in the USA using CNC machining and is made from 6061 billet aluminum combined with a stainless steel shaft.
PLEASE NOTE: this throttle body uses a larger bolt pattern (4.125" x 4.125") than our other throttle bodies. The 105mm does NOT use a 5.0 Mustang bolt pattern. This will bolt up directly to Pro-Jay intake manifolds or anything else with the larger 4.125" x 4.125" bolt pattern.
Don't forget a TPS Adapter if you need one!
TPS Notes:
If using - 86-93 5.0L Mustang TPS - Direct bolt on - Standard CW Mustang T/Wheel Rotation
If using -Toyota MR2 TPS - TPS Adapter needed - Standard CW Mustang T/Wheel Rotation
If using - Toyota Supra 2JZGTE TPS - TPS Adapter needed - Reverse CCW T/Wheel Rotation
If using - Lexus 300IS TPS - TPS Adapter is needed, but... it can be ccw or cw. See pictures below for help.
***You must select the rotation direction of the throttle wheel, see above tps notes***
***Please note the pull direction of the t/cable. From the front or the rear of the t/body***
***Black Anodized Finish ONLY***
***Front Cable ONLY***
Features:
- Uses a 4.125" x 4.125" mounting bolt pattern
- M8x45mm screws and washers included
- Total thickness including the Vibrant HD Clamp mount is 2.615 inches
- Available in standard Mustang CW or CCW rotation
- Cable mounting bracket pre-installed

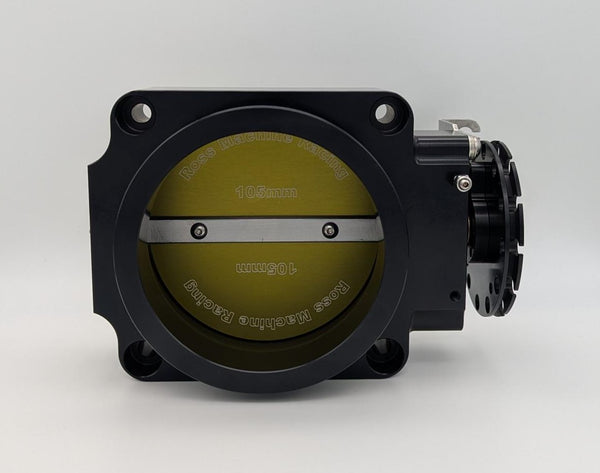

- 105mm diameter blade - CNC machined from 6061 aluminum
- 4" (101mm) Vibrant HD Clamp built in
- CNC solid billet 6061 aluminum construction
- 1/2" stainless steel shaft - split shaft design to handle high boost without breaking

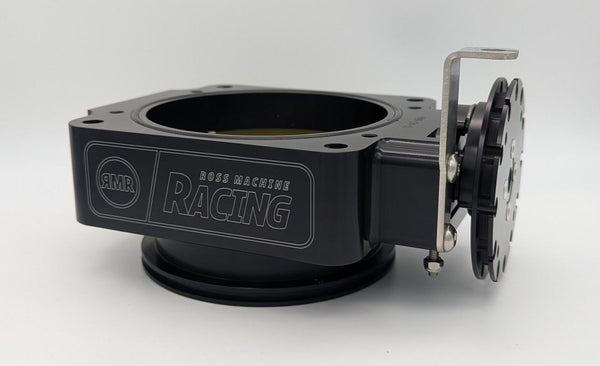

- Black Anodize finish with Ross Machine Racing logo
- Includes 4" o-ring installed in back for prefect seal
- Needle bearing with seal to minimize leakage under high boost

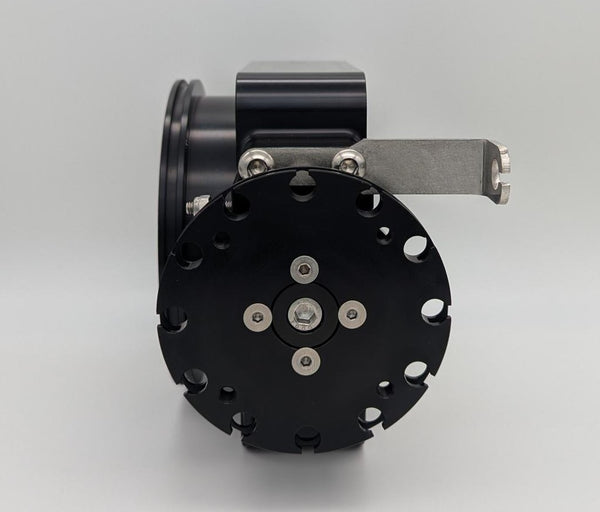

- 2.7" OR 2.5" throttle cable pulley
